small business home made laser machine cnc 1390 co2 laser cutting engraving machine

small business home made laser machine cnc 1390 co2 laser cutting engraving machine

small business home made laser machine cnc 1390 co2 laser cutting engraving machine

20,231.07

13 in stock

Qty:
Compare
SKU: 32865782363 Category:

Description

small business home made laser machine cnc 1390 co2 laser cutting engraving machine

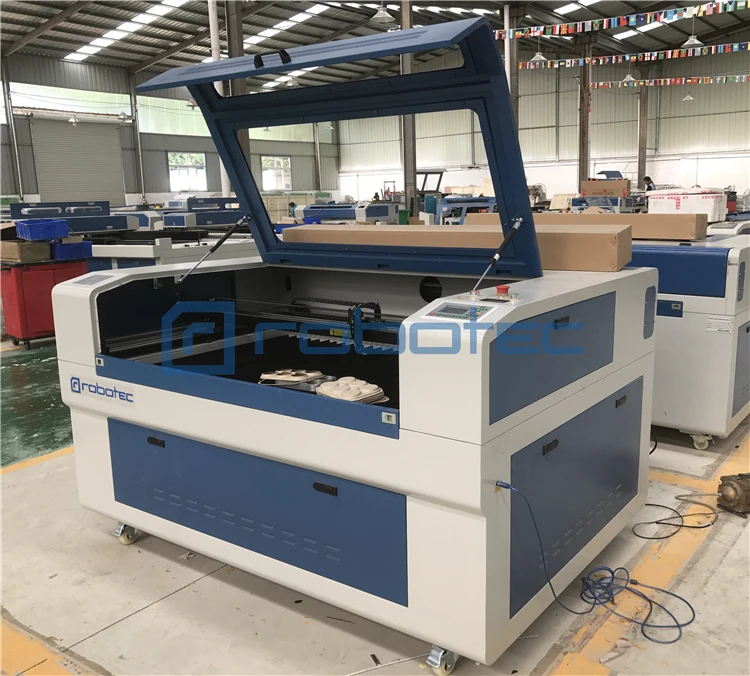

HTB13j2fm3mTBuNjy1Xbq6yMrVXaC - small business home made laser machine cnc 1390 co2 laser cutting engraving machineHTB1e6.lm1uSBuNjy1Xcq6AYjFXaC - small business home made laser machine cnc 1390 co2 laser cutting engraving machineHTB1LvGPeOOYBuNjSsD4q6zSkFXab - small business home made laser machine cnc 1390 co2 laser cutting engraving machine

1390 laser cutting machine parameters:

Item / Model

RDJ-1390

Cutting area

1300*900mm

Laser power

60W/80W/100W/130W150W/180W

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed

0-60000mm/min

Cutting speed

0-40000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

220V/50HZ (Optional 110V/60HZ)

Operating temperature

0 – 45°C

Operating humidity

5 – 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Driving system

stepper motor

Cooling mode

Water chiller CW3000 CW5000 CW5200

Equipment Dimensions

1790x1100x1070mm

Net Weight:

320kg

Shipping Dimensions

1980 x 1440 x 1220mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens

1390 laser cutting machine parts:

HTB15CZ0OpXXXXbAXXXXq6xXFXXX2 - small business home made laser machine cnc 1390 co2 laser cutting engraving machine

>> Laser cutting engraving machine features:

1. 3mm Cold-rolled steel welded machine bed, strong and running stable.

2. Aluminium blade table: to process hard materials like acrylic, wood and so on.

3. Fireproof window,more security.

4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service time over 8500~10000 working hours.

5. Laser Power 40W~180W, good quality and stable output to prolong the laser tube service time.

6. Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.

7. Ruida or Leetro Controller USB interface, support online/offline working, English language system, adjustable cutting speed and power.

8. High accuracy stepper motors and drivers. Belt transmission.

9. Tiwan Hiwin Linear square guide rails, higher precision.

10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.

11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick.

12. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.

>>1390 laser cutting machine Option Parts:

HTB1IjZhOFXXXXcKXpXXq6xXFXXXs - small business home made laser machine cnc 1390 co2 laser cutting engraving machine

>>Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.

HTB1VeZpOpXXXXbTaXXXq6xXFXXXx - small business home made laser machine cnc 1390 co2 laser cutting engraving machine

1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001

HTB1D5.lOpXXXXb1XXXXq6xXFXXXO - small business home made laser machine cnc 1390 co2 laser cutting engraving machine

For offer the most suitable machine with favorable price, would you like to confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
After your return comments, we will send you more information about the machine along price . Thanks

HTB15OxzcxrI8KJjy0Fpq6z5hVXa5 - small business home made laser machine cnc 1390 co2 laser cutting engraving machine

Additional information

Brand Name

NoEnName_Null

Condition

New

Model Number

RTJ-1390-5

CNC or Not

CNC

Item

laser cutting engraving machine

laser tube

80W/100w/130w/150w/180w

Software

Rdworks V8

Cooling mode

Water-cooling

Engraving speed

0-50000mm/min

Software support

Laser cut ,coreldraw, photoshop

Driving system

stepper motor

Option1

Auto focus

Option2

Rotary axis

Warranty

24 months
