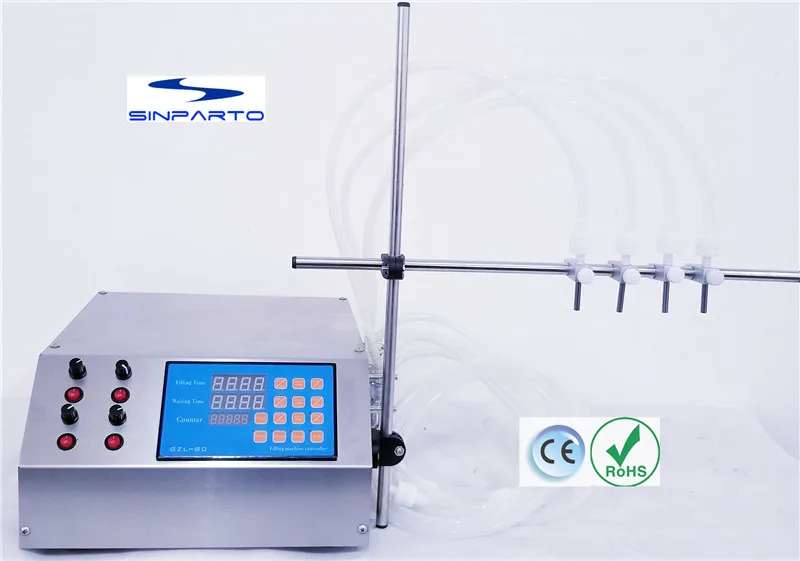

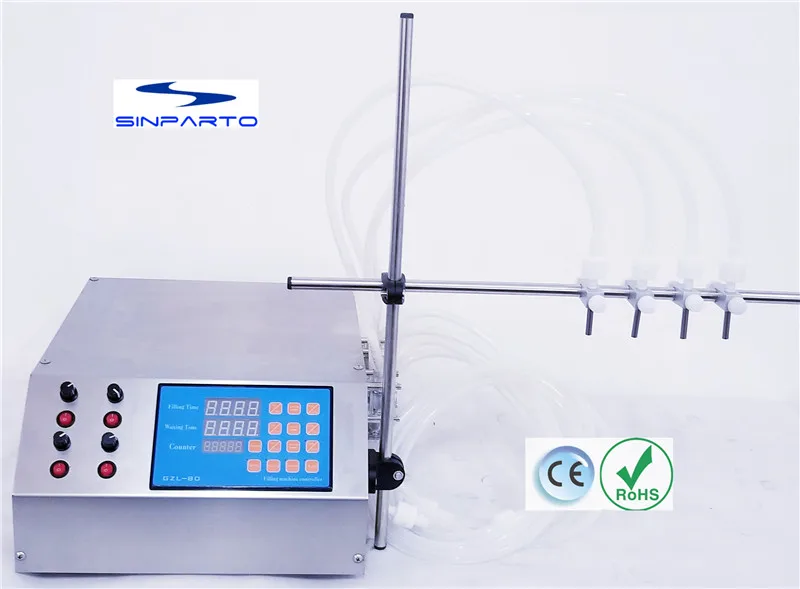

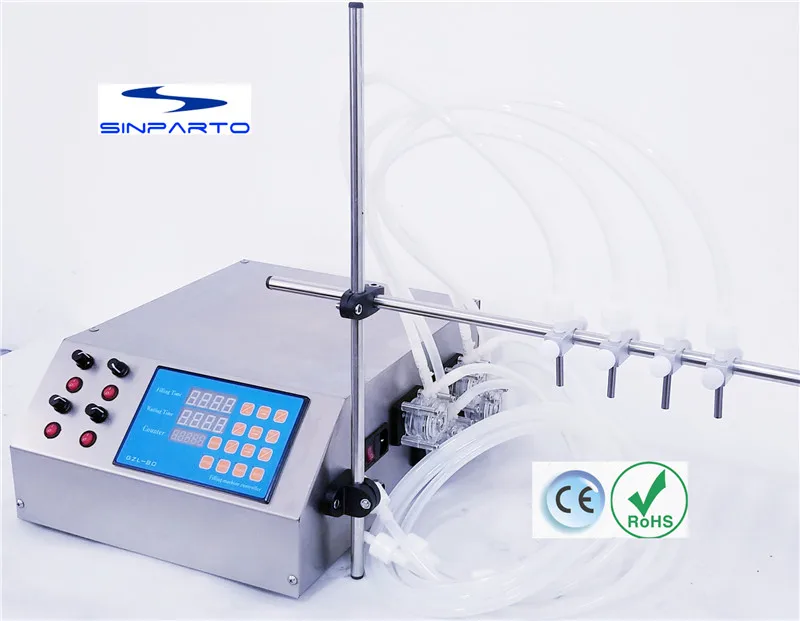

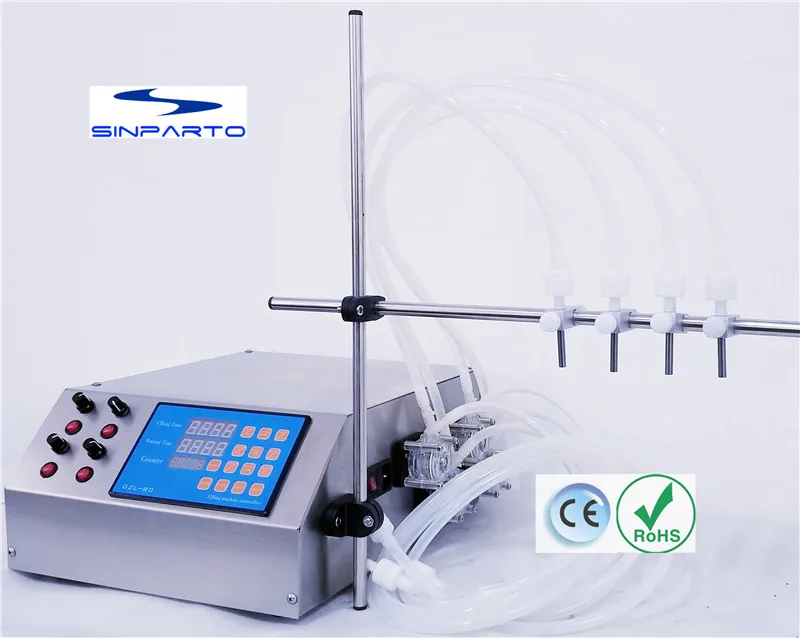

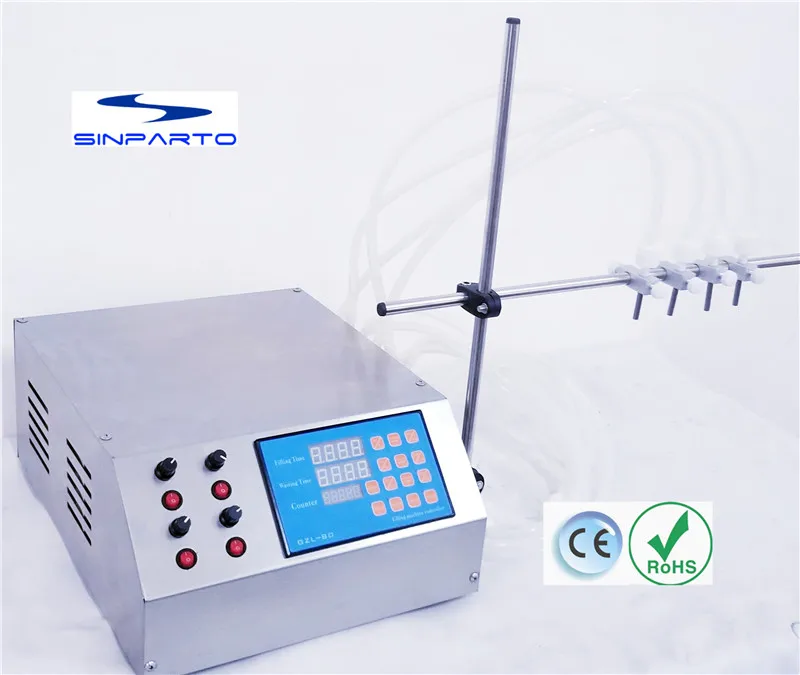

Compact Digital Control peristaltical Pump Liquid Filling Machine
Controled by micro-computer, fill liquid by setting the filling time and speed.
Filling Liquid From 0.5-500ml/min very precisely per filling head.
Digital Panel, very easy to operate.
Voltage AC 180V-280V (please leave us a message if you need 110V)
Filling Range 0.5ml-500ml /min*4
Max Flow Rate 500ml/min*4
Package Size 320X400X180 (mm)
Max Suck Distance 1.2 Meter
Anti-dripping Funtion Available
Memory Function out of power Available
outside diameter of filling nozzle 6mm (if you ned smaller 6mm, please leave message with us.)
1. Import single-chip microcomputer control, high efficiency, low power consumption
2. Automatic counting function, effectively control filling quantiy
3. Digital tube display, touch screen is very easy to operate
4. High filing accuracy
5. Wide Voltage range
6. Working performance is stable and can be used for long time
7. This can self-suck the liquid.
8. The pump can stand acid and alkali
9. Anti-dripping design
10. Reasonable design, made of stainless steel, meet GMP requirement
*Widely used, almost all the easy flow of liquid can filling, particularly suitable for sanitary conditions require very high nutrient solution, biological agents, chemicals and pollution, toxic, corrosive liquid filling;
by the way, it is not good for 100%VG.Because it is very viscous. as for filling e-liquid ,it should be 30%VG or less owing to the weak pump motor.as for 50% or 70% VG rate eliquid, please fill it with heat.or the heavy liquid will affect the filling speed and accuracy.
This product provides one year warranty except the silicone tubes, product quality problems within one year, the company will provide free maintenance service.
